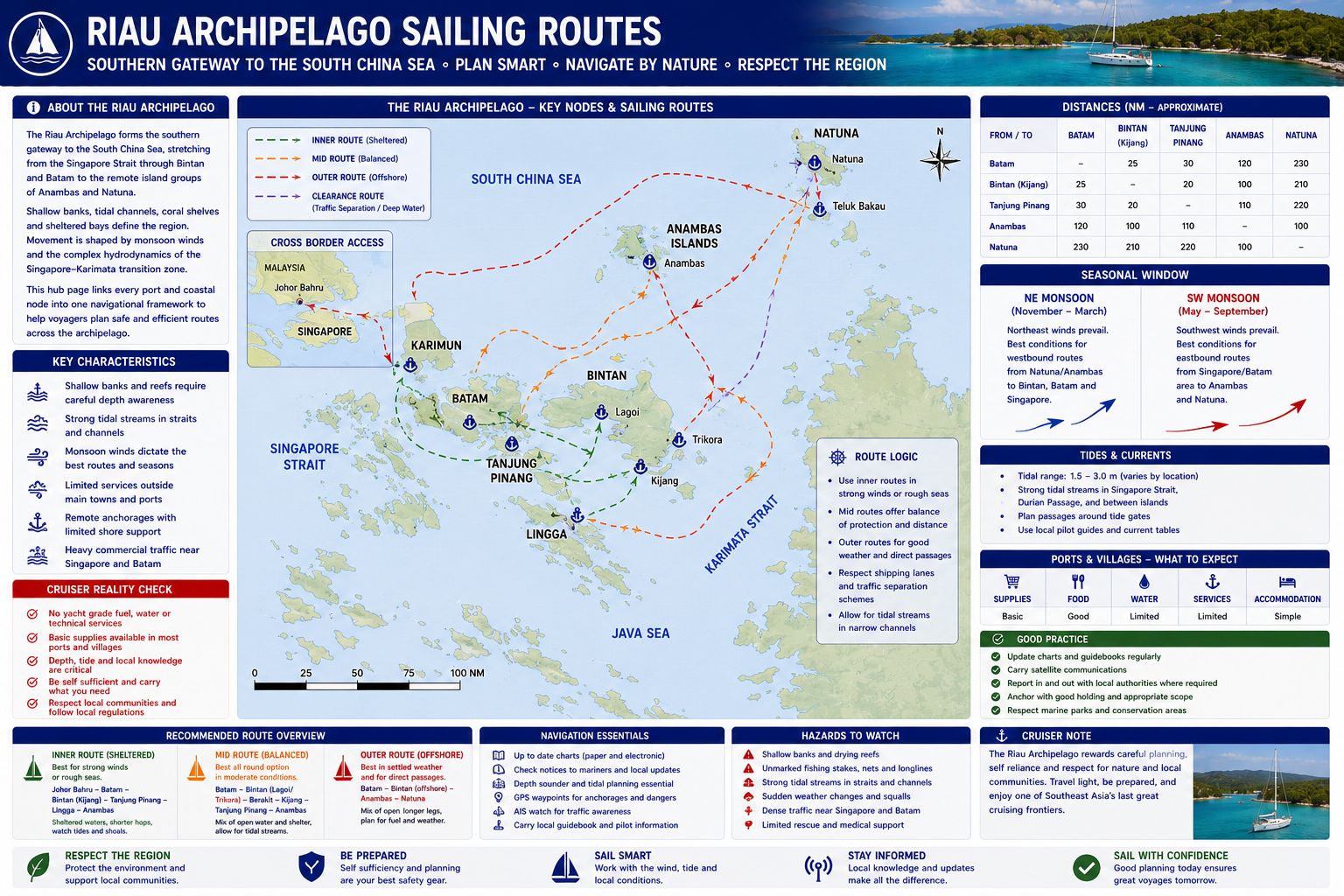

Riau Archipelago sailing routes. The Riau Archipelago forms the southern gateway to the South China Sea, stretching from the Singapore Strait through Bintan and Batam to the remote island groups of Anambas and Natuna. The region is defined by shallow banks, tidal channels, coral shelves, and sheltered bays, with movement shaped by monsoon winds and the complex hydrodynamics of the Singapore–Karimata transition zone. The primary nodes include Tanjung Pinang, Batam, Bintan, Lingga, Kijang, Lagoi, Trikora, Berakit, Karimun, Anambas, Natuna, Teluk Bakau, and the cross‑border access at Johor Bahru.

Across the archipelago, ports and villages provide basic supplies but no yacht‑grade water, fuel, or technical services. The region’s geography forces yachts to work with depth, tide, and localised conditions rather than marked channels or harbour infrastructure. The outer islands offer remote anchorages with limited shore support, while the inner islands near Singapore experience heavy commercial traffic. This hub page defines the operational logic of the Riau Archipelago and links every port and coastal node into a single navigational framework.

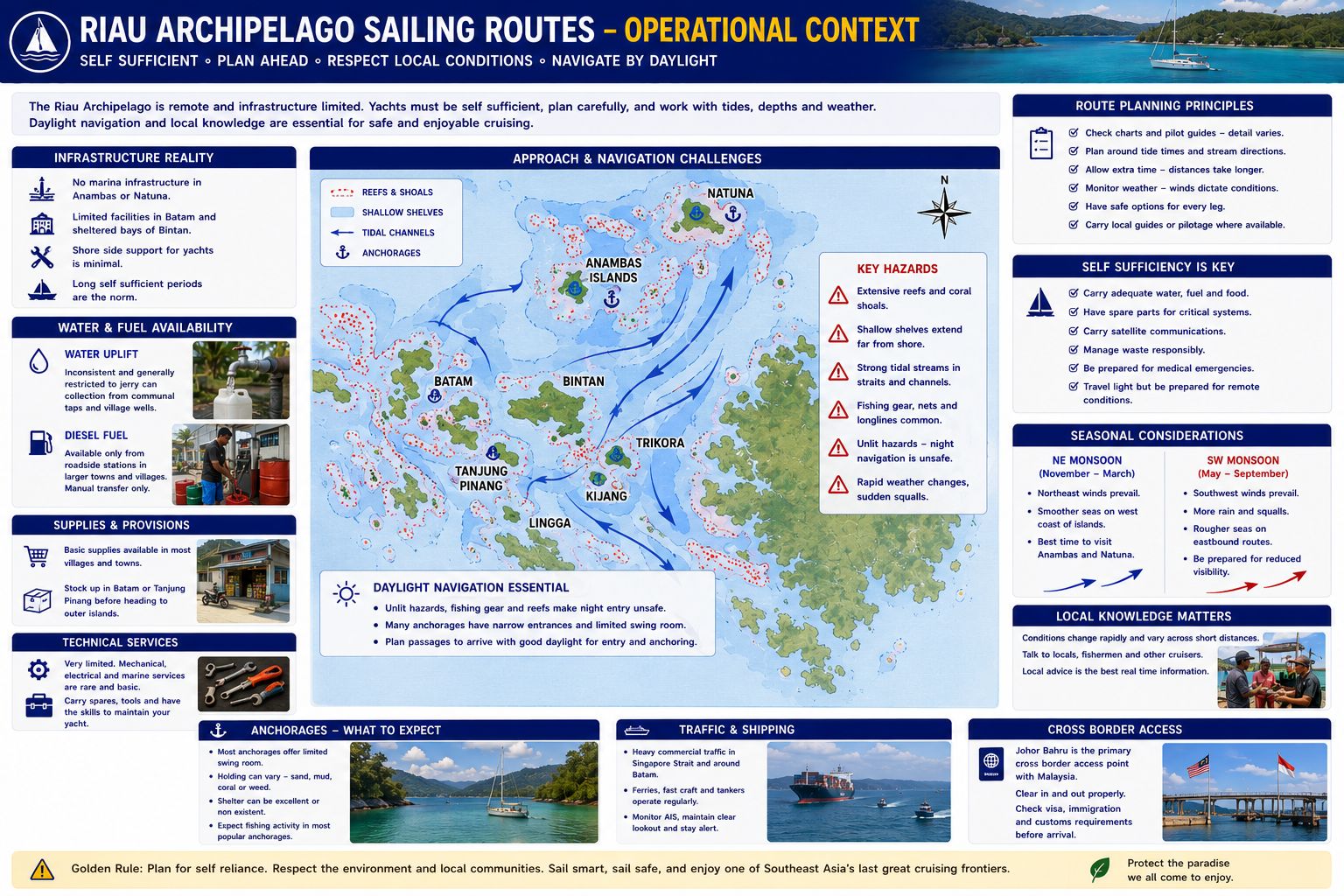

Riau Archipelago Sailing Routes - Operational Context

The Riau Archipelago has no marina infrastructure outside limited facilities in Batam and the sheltered bays of Bintan, and shore‑side support for yachts is minimal. Water uplift is inconsistent and generally restricted to jerry‑can collection from communal taps, while diesel is available only from roadside stations with manual transfer. Approaches to most islands are shaped by reefs, tidal currents, and shallow shelves, with many anchorages offering narrow holding areas and limited swing room. Movement between regions depends on daylight navigation, tide awareness, and careful depth management, as night entry is unsafe across most of the archipelago due to unlit hazards, fishing gear, and reef systems. Yachts must remain self‑sufficient for extended periods, especially when moving toward Anambas and Natuna.

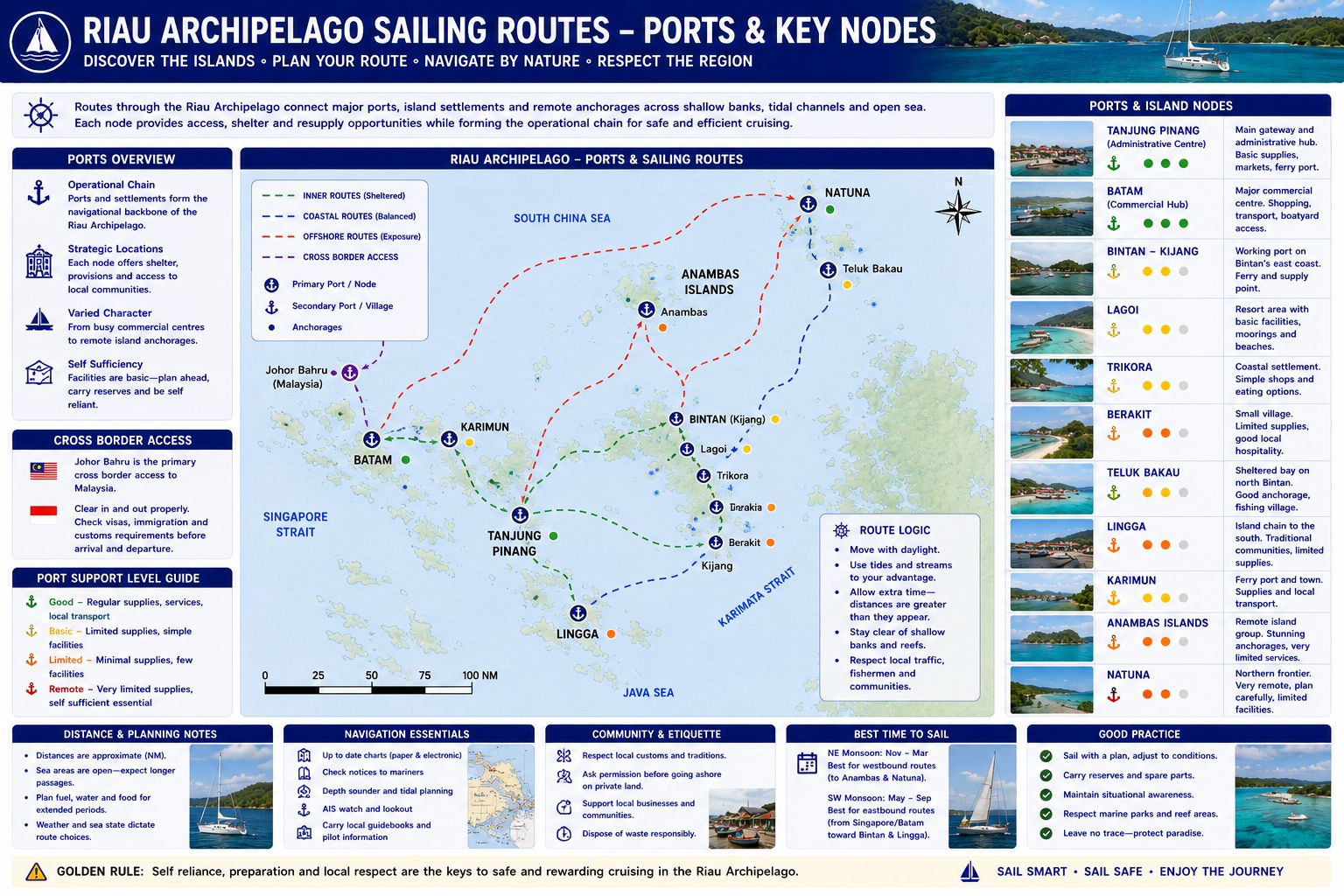

Riau Archipelago Sailing Routes - Ports

Routes through the Riau Archipelago move from the administrative centre at Tanjung Pinang, then follow the Bintan coastline through Kijang, Lagoi, Trikora, Berakit, and the sheltered bays around Teluk Bakau, before extending south toward the island chain of Lingga. Western movements link the commercial access at Batam and the Singapore Strait approaches to Karimun, while offshore passages lead to the remote anchorages of Anambas and the northern frontier at Natuna. Cross‑border transitions connect the archipelago to Johor Bahru, forming the operational link between Indonesia and the Malaysian mainland. Together, these ports and island settlements form the operational chain that defines movement through the Riau Archipelago region.

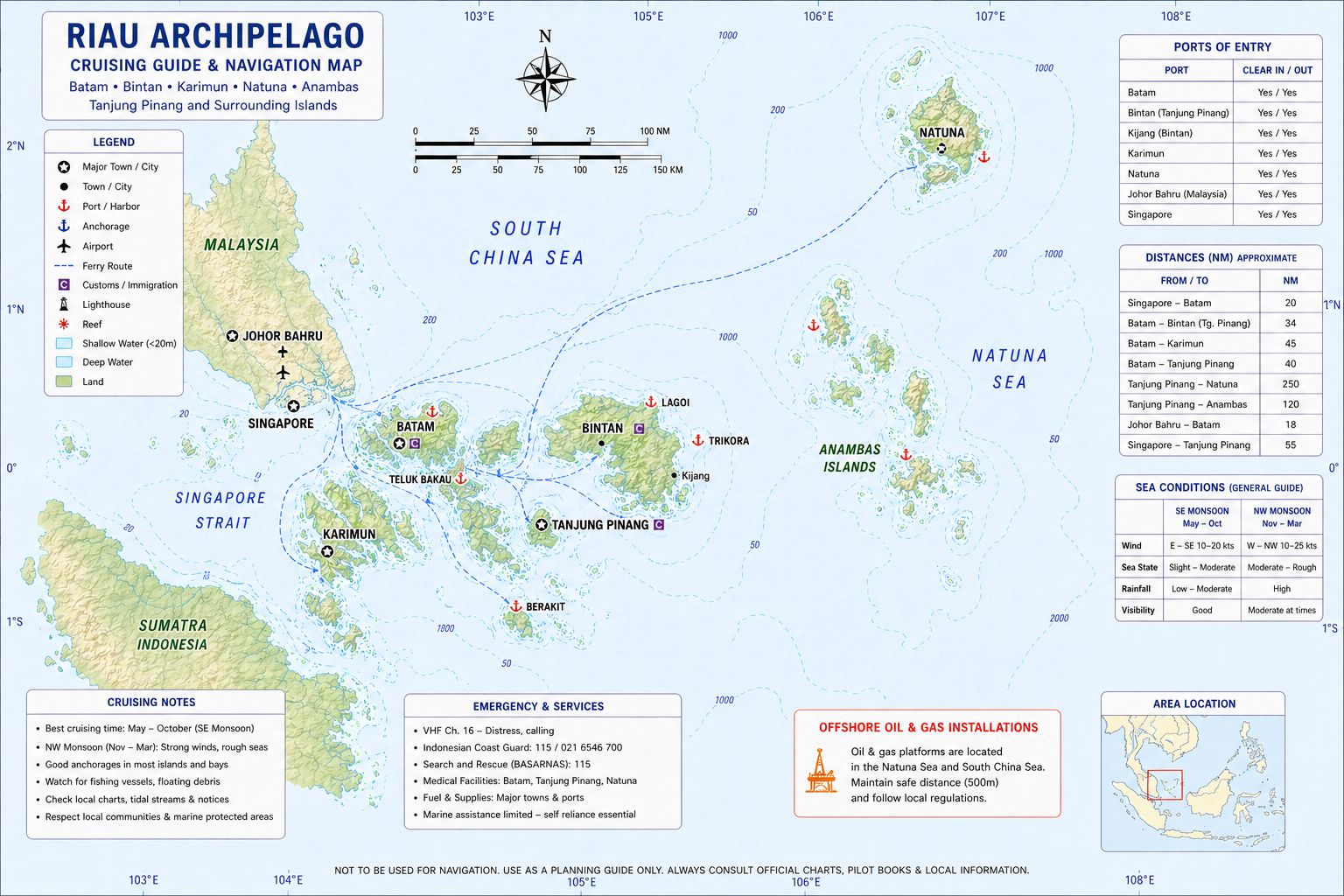

Chart Disclaimer. This chart is a schematic representation for illustrative purposes only and must not be used for navigation. Refer to official hydrographic charts for safe navigation. Be aware ENC charts may differ from official hydrographic charts. Both should be corrected and updated regularly.

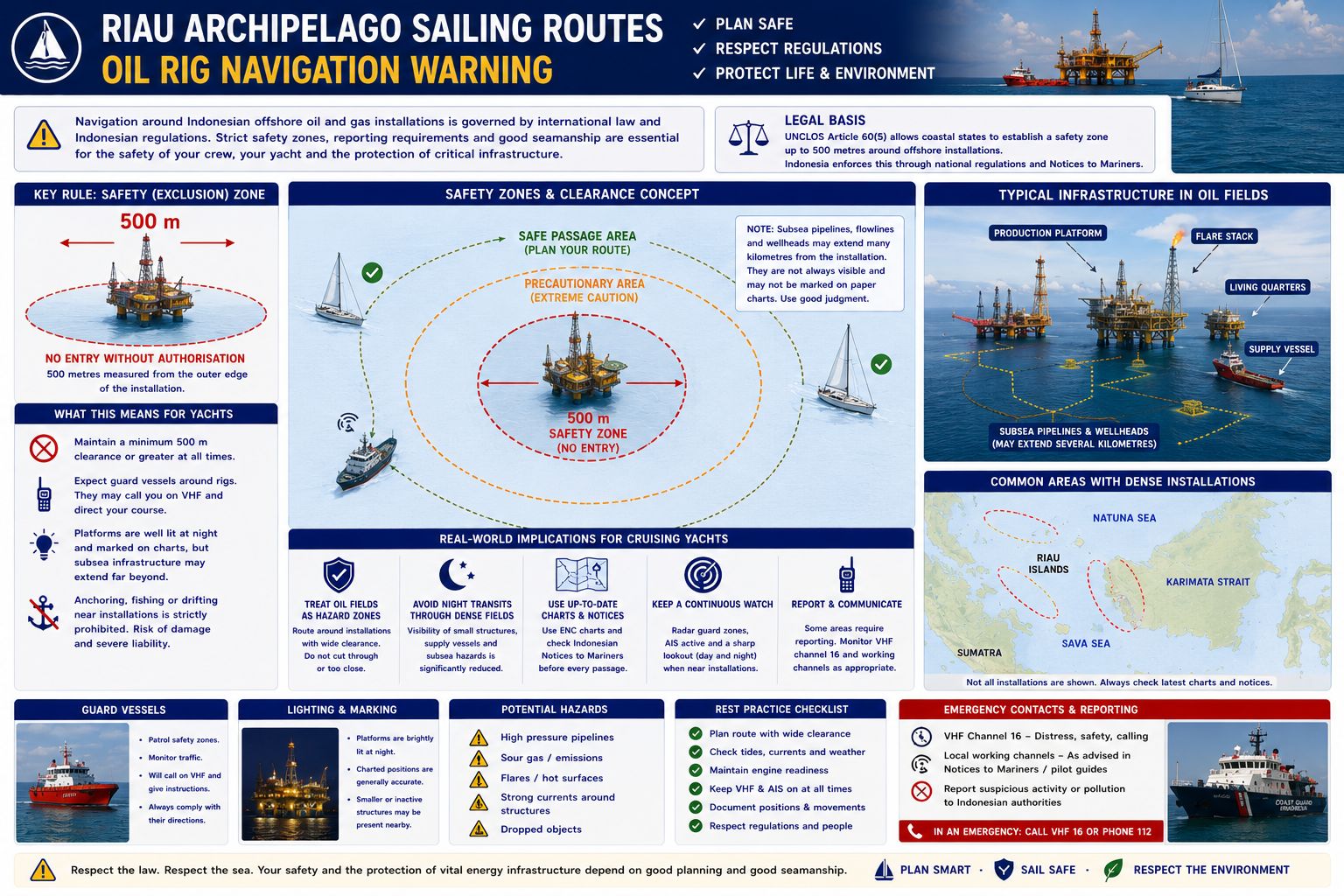

Oil Rig Navigation Warning

Navigation around Indonesian offshore oil and gas installations is governed by a combination of international maritime law (primarily UNCLOS and IMO guidance) and Indonesian national regulations, and these impose strict safety, clearance, and reporting requirements that are critical for cruising yachts to understand.

The most important rule is the establishment of a mandatory safety (exclusion) zone around offshore platforms. Under United Nations Convention on the Law of the Sea, coastal states such as Indonesia are entitled to create a 500-metre safety zone measured from the outer edge of the installation, within which navigation is restricted and vessels must not enter unless authorised. In practice, many installations also have wider precautionary areas (often charted or advised in Notices to Mariners) where vessels are expected to proceed with extreme caution. From a practical navigation standpoint for yachts:

• Maintain a minimum 500 m clearance or greater at all times (treated as “no-go” zone).
• Expect guard vessels around rigs; these may call you on VHF and direct your course.
• Platforms are well lit at night and marked on charts, but subsea infrastructure (pipelines, wellheads) may extend well beyond the visible structure.
• Anchoring, fishing, or drifting near installations is strictly prohibited due to risk of damage and liability.

In Indonesian waters particularly areas such as the Java Sea, Natuna Sea, and Makassar Strait dense oil and gas infrastructure means that route planning must account for clusters of platforms, not just isolated rigs. For cruising yachts, the real-world implications are:

• Treat oil fields as hazard zones, not just chart features
• Avoid night transits through dense fields where possible
• Use up-to-date electronic charts (ENC) and Notices to Mariners
• Keep a continuous watch and radar guard zones, and AIS active when transiting near installations

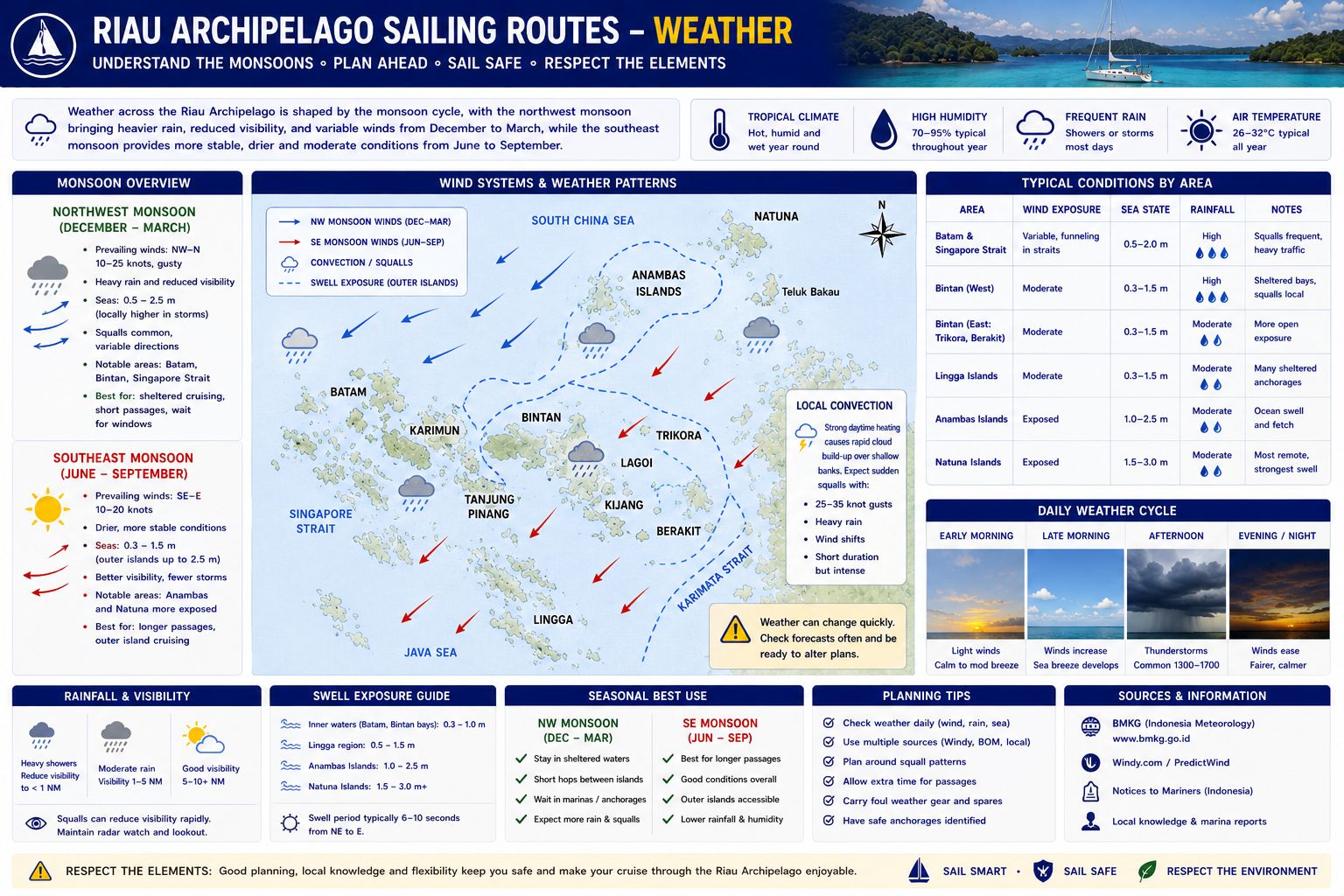

Riau Archipelago Sailing Routes – Weather

Weather across the Riau Archipelago is shaped by the monsoon cycle, with the northwest monsoon bringing heavier rain, reduced visibility, and variable winds from December to March, while the southeast monsoon provides more stable conditions with moderate, drier airflow from June to September. Localised convection over the shallow banks produces sudden squalls and rapid cloud build‑up, especially near Bintan and Batam. Rainfall is frequent throughout the year, with humidity and heat shaping daily conditions across the archipelago. The outer islands of Anambas and Natuna experience stronger swell and more open‑sea influence than the sheltered inner islands

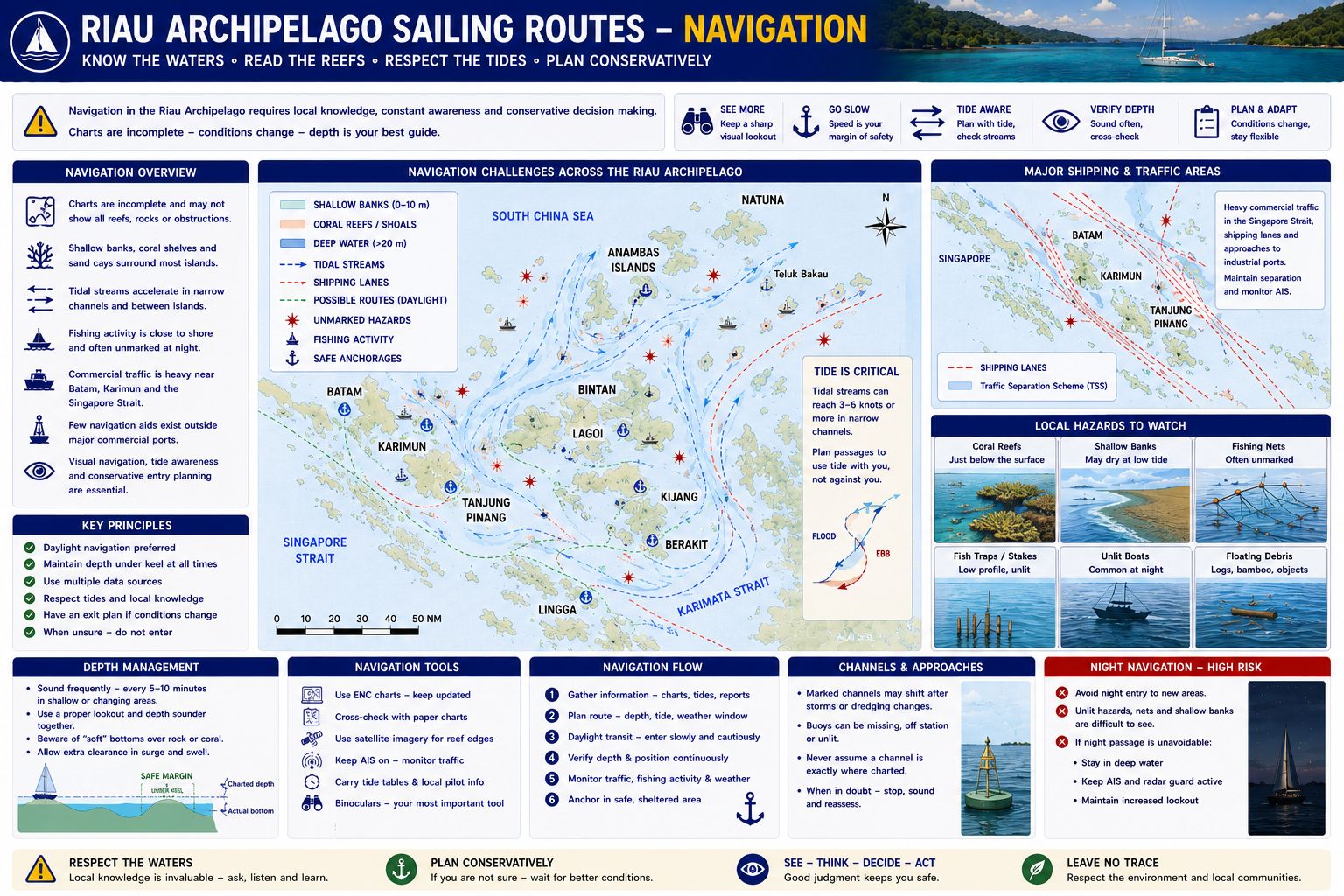

Riau Archipelago Sailing Routes – Navigation

Navigation relies on depth, tide, and visual reef reading, as charts are incomplete and local conditions vary. Shallow banks, coral shelves, and unmarked hazards dominate the approaches to many islands, while tidal currents accelerate through narrow channels. Fishing fleets operate close to shore, deploying nets, traps, and unlit markers that complicate night movement. Commercial traffic is heavy near Batam, Karimun, and the Singapore Strait, requiring careful separation from shipping lanes. Few navigation aids exist outside major commercial ports, and even marked channels may shift after seasonal changes. Yachts must rely on visual navigation, tide awareness, and conservative entry planning

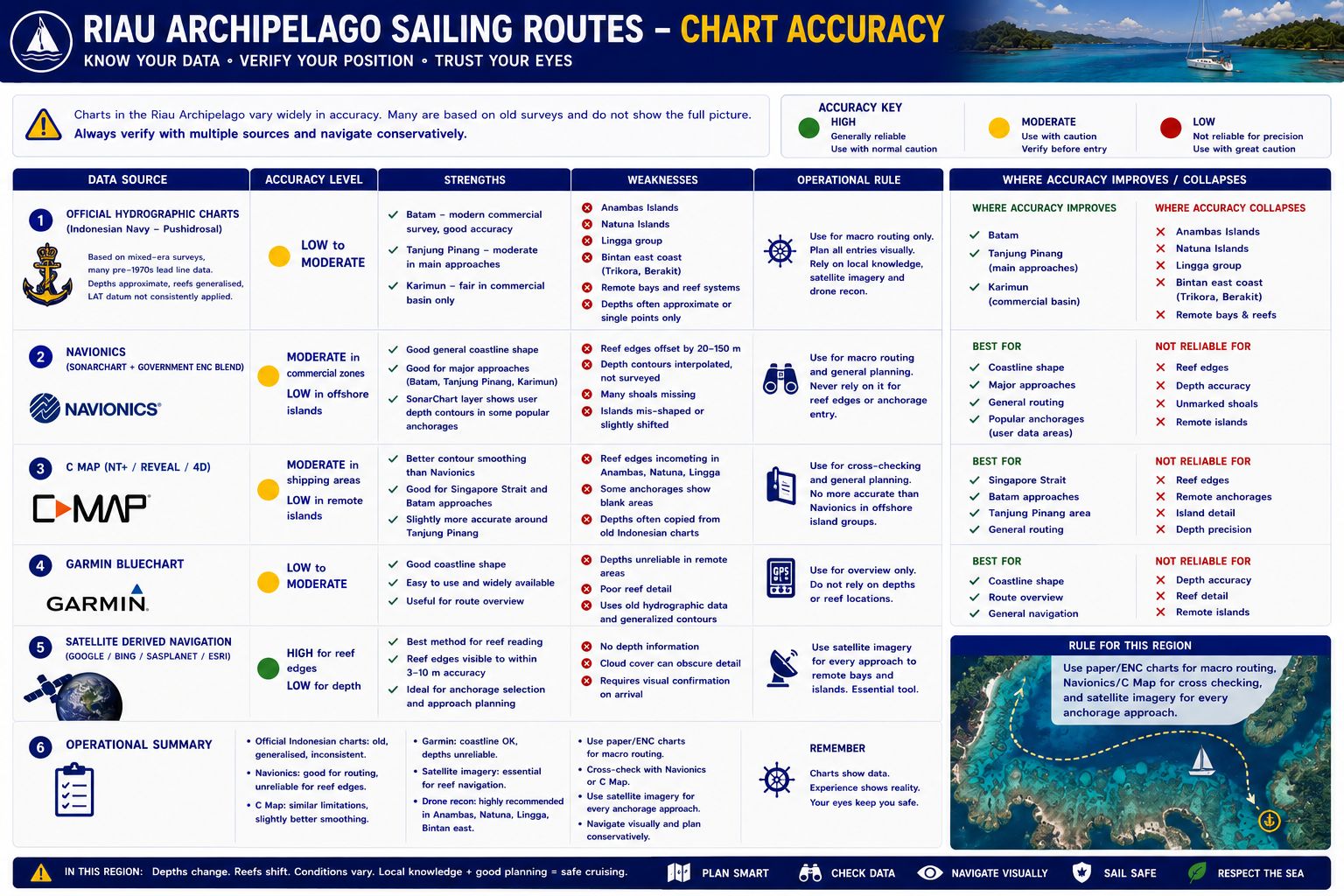

Chart Accuracy – Riau Archipelago

• Official Hydrographic Charts (Indonesian Navy – Pushidrosal). Accuracy level: LOW to MODERATE depending on the sub‑region. Operational reality. Most charts for Bintan, Batam, Karimun, Lingga, Anambas, Natuna, Teluk Bakau, Trikora, Berakit are based on mixed‑era surveys, with many areas still relying on pre‑1970s lead‑line data. Depths in the straits and channels are approximate, not modern multibeam. Reef edges in the Anambas and Natuna groups are generalised, not precise. Many bays and island anchorages show no soundings or single‑point soundings only. LAT datum is not consistently applied across older sheets.Where accuracy improves. Batam has modern commercial survey, good accuracy. Tanjung Pinang has moderate accuracy in the main approaches. Karimun has fair accuracy in the commercial basin only. Where accuracy collapses. Anambas Islands. Natuna Islands. Lingga group. Bintan east coast (Trikora, Berakit). Remote bays and reef systems. These areas require visual navigation, drone recon, and satellite‑based reef reading.
• Navionics (SonarChart + Government ENC Blend). Accuracy level: MODERATE in commercial zones, LOW in offshore islands. Strengths. Good for general coastline shape. Good for major approaches (Batam, Tanjung Pinang, Karimun). SonarChart layer sometimes shows user‑generated depth contours in popular anchorages (Anambas, Bintan east coast). Weaknesses. Reef edges in Anambas, Natuna, Lingga, Bintan east are offset by 20–150 m. Depth contours are interpolated, not surveyed. Many shoals are missing. Some islands are mis‑shaped or shifted slightly. Operational rule. Use Navionics for macro routing, never for micro pilotage.
• C‑Map (NT+ / Reveal / 4D). Accuracy level: MODERATE in shipping areas, LOW in remote islands. Strengths. Better contour smoothing than Navionics. Good depiction of Singapore Strait and Batam commercial approaches. Slightly more accurate around Tanjung Pinang. Weaknesses. Reef edges in Anambas, Natuna, Lingga are incomplete. Some anchorages show blank areas with no detail. Depths often copied from old Indonesian charts. Operational rule. C‑Map is no more accurate than Navionics in the offshore island groups.
• Garmin BlueChart. Accuracy level: LOW to MODERATE. Garmin uses a blend of Old Indonesian hydrographic data. C‑Map sources. Satellite‑derived coastline vectors. Operational notes. Good for coastline shape. Poor for reef detail. Depths are not reliable in Anambas, Natuna, Lingga, or Bintan east.
• Satellite‑Derived Navigation (Google / Bing / SASPlanet / ESRI). Accuracy level: HIGH for reef edges, LOW for depth. Strengths. Best method for reef reading in Anambas, Natuna, Lingga, Bintan east coast. Reef edges visible to within 3–10 m accuracy. Ideal for anchorage selection and approach planning. Weaknesses. No depth information. Cloud cover can obscure detail. Requires visual confirmation on arrival. Operational rule. Satellite imagery is mandatory for safe entry into remote anchorages.
• Operational Summary. Official Indonesian charts: old, generalised, inconsistent. Navionics: good for routing, unreliable for reef edges. C‑Map: similar limitations, slightly better smoothing. Garmin: coastline OK, depths unreliable. Satellite imagery: essential for reef navigation. Drone recon: highly recommended in Anambas, Natuna, Lingga, Bintan east. Rule for this region. Use paper/ENC charts for macro routing, Navionics/C‑Map for cross‑checking, and satellite imagery for every anchorage approach.

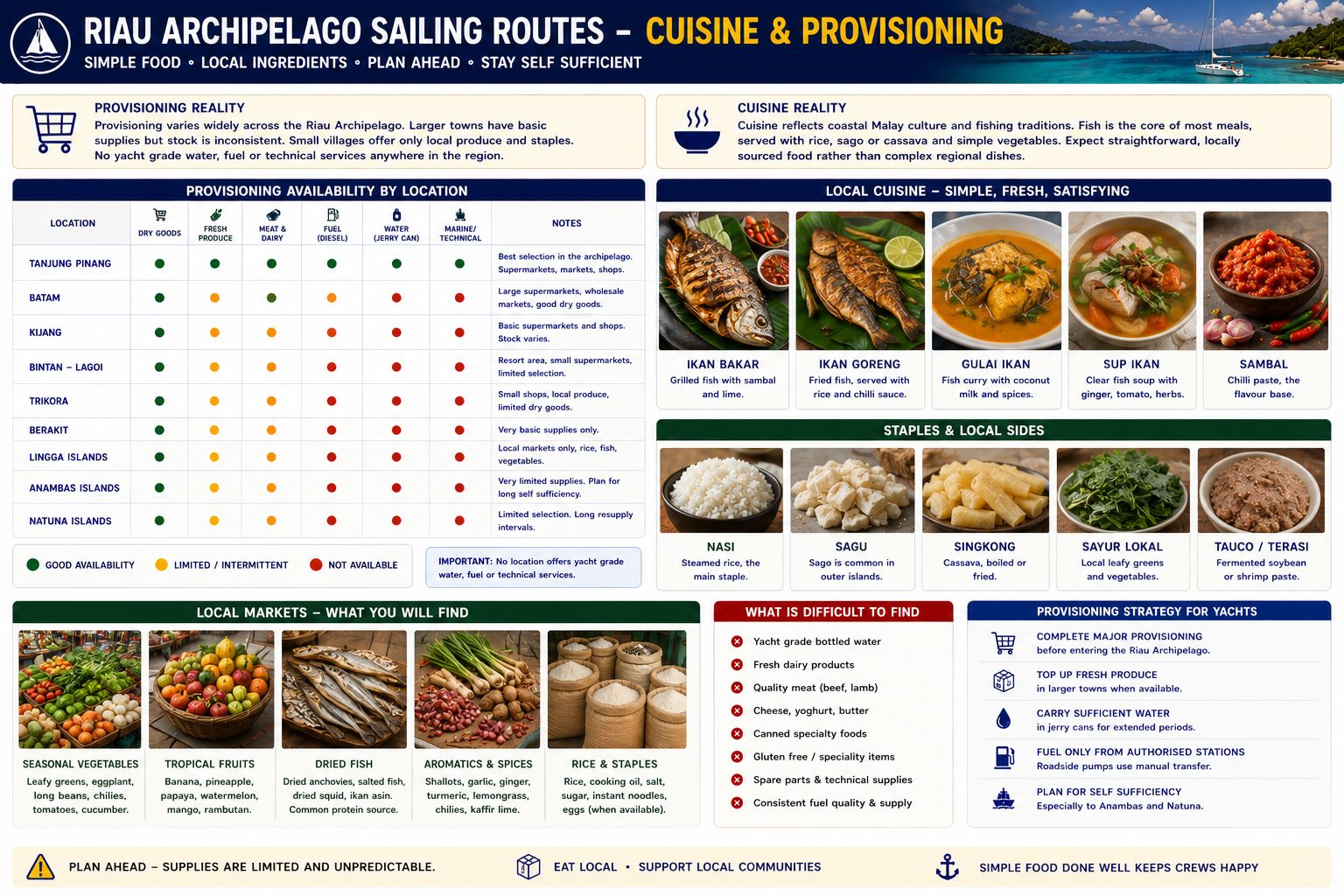

Riau Archipelago Sailing Routes – Provisioning

Provisioning varies across the Riau Archipelago. Larger towns such as Tanjung Pinang, Batam, and Kijang offer basic supermarkets, markets, and dry‑goods suppliers, though availability fluctuates with shipping schedules and local demand. Smaller coastal settlements provide only local produce, rice, and limited packaged goods. Fresh vegetables and fruit are available intermittently, while dairy, meat, and imported goods are inconsistent. No location in the region offers yacht‑grade water, fuel, or technical services, and all major provisioning must be completed before entering the region or at the few larger towns with modest supply chains. Yachts must remain self‑sufficient for extended periods, especially when moving toward Anambas and Natuna.

Riau Archipelago Sailing Routes – Cuisine

Cuisine across the Riau Archipelago reflects coastal Malay communities, fishing traditions, and regional variations between the inner and outer islands. Fish, grilled or fried, forms the core of daily meals, accompanied by rice, sago, or cassava depending on the island group. Markets offer simple prepared foods, dried fish, and local vegetables, with limited variation outside the larger towns. Inland areas rely more on root crops and preserved fish, while coastal towns incorporate dried fish and rice. Crews will encounter straightforward, locally sourced meals rather than complex regional cuisine.

Indonesian Beverages

Indonesia offers a varied but locally distinctive range of beverages shaped by culture, climate, and religion. Beer is the most widely available alcoholic drink, with Bintang and Anker Beer being the most common, typically light, refreshing lagers suited to the tropical heat. In some regions, traditional spirits are produced, such as Arak Bali, a strong distilled liquor often made from palm sap or rice, and Tuak, a fermented palm wine found in various islands. Availability of alcohol varies significantly, with stricter limitations in more conservative areas. Non-alcoholic beverages are a major part of daily life, including fresh tropical juices (jus buah), young coconut water (air kelapa), and sweet iced teas. Indonesian coffee is also notable, with varieties such as Kopi Tubruk widely consumed, alongside the globally known Kopi Luwak. Herbal drinks known as jamu, made from turmeric, ginger, and other roots, are traditionally valued for their health benefits and are commonly found in local markets.

Mechanical and Electrical Repairs Resource

If you are headed somewhere remote consider the need to expand your knowledge base or have an information resource on board. Why not get a copy of my book The Marine and Electrical and Electronics Bible 4th Edition. By and for yachties, with everything from batteries and charging, solar and wind, diesel engines and marine electronics and so much more. Your complete systems guide. 650 pages of practical advice. In Australia and New Zealand order a copy through Boat Books. UK and European boats can buy the UK Edition Here. US and Canadian boats can get the US Edition Order Here. Marine systems are my profession so let me help you. By a liveaboard boat owner for other boat owners

Riau Archipelago Sailing Routes - Summary

The Riau Archipelago is a shallow‑water cruising region defined by tidal channels, coral shelves, and limited infrastructure. Movement depends on seasonal weather, visual navigation, and careful planning due to the absence of yacht‑grade services. Ports and villages provide only basic supplies, and yachts must plan for minimal shore support throughout the region. Riau Archipelago Sailing Routes for all you need to know.
