A marine diesel lift pump is a low‑pressure pump designed to move fuel from the storage tank through pre‑filters and into the high‑pressure injection pump. Unlike gasoline systems, diesel engines operate at extremely high injection pressures, so the injection pump must receive a steady, uninterrupted supply of fuel at the correct volume. The lift pump provides this by maintaining consistent flow and preventing cavitation
Fuel cavitation in the injector pump feed occurs when low inlet pressure or high temperature causes fuel to vaporize, forming bubbles that collapse under compression. In diesel systems, cavitation typically develops on the suction side of the lift or feed pump when filters are clogged, lines restricted, or fuel temperature exceeds 50 °C. The reduced pressure allows dissolved gases or vapor pockets to form. As the fuel enters the high‑pressure zone of the injector pump, these bubbles implode, generating shock waves that erode pump surfaces and disrupt flow stability. The result is loss of pressure, erratic injection, and accelerated wear.

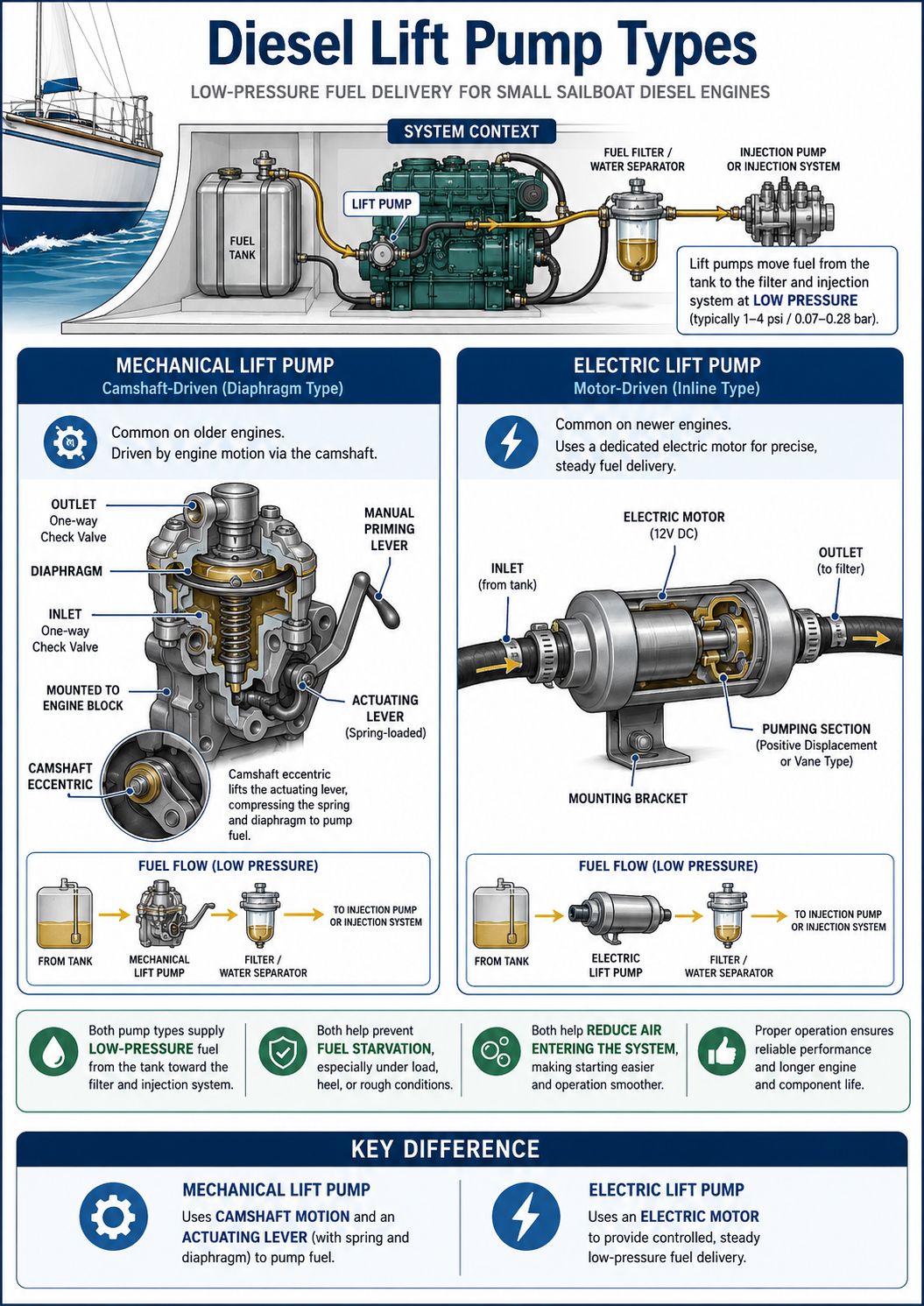

There are two main types: mechanical lift pumps, often integrated into older rotary injection systems, and electric lift pumps, common in modern engines. Mechanical pumps rely on camshaft motion, while electric pumps use dedicated motors to deliver precise flow. Both designs protect injectors and high‑pressure pumps from damage caused by air bubbles or fuel starvation.

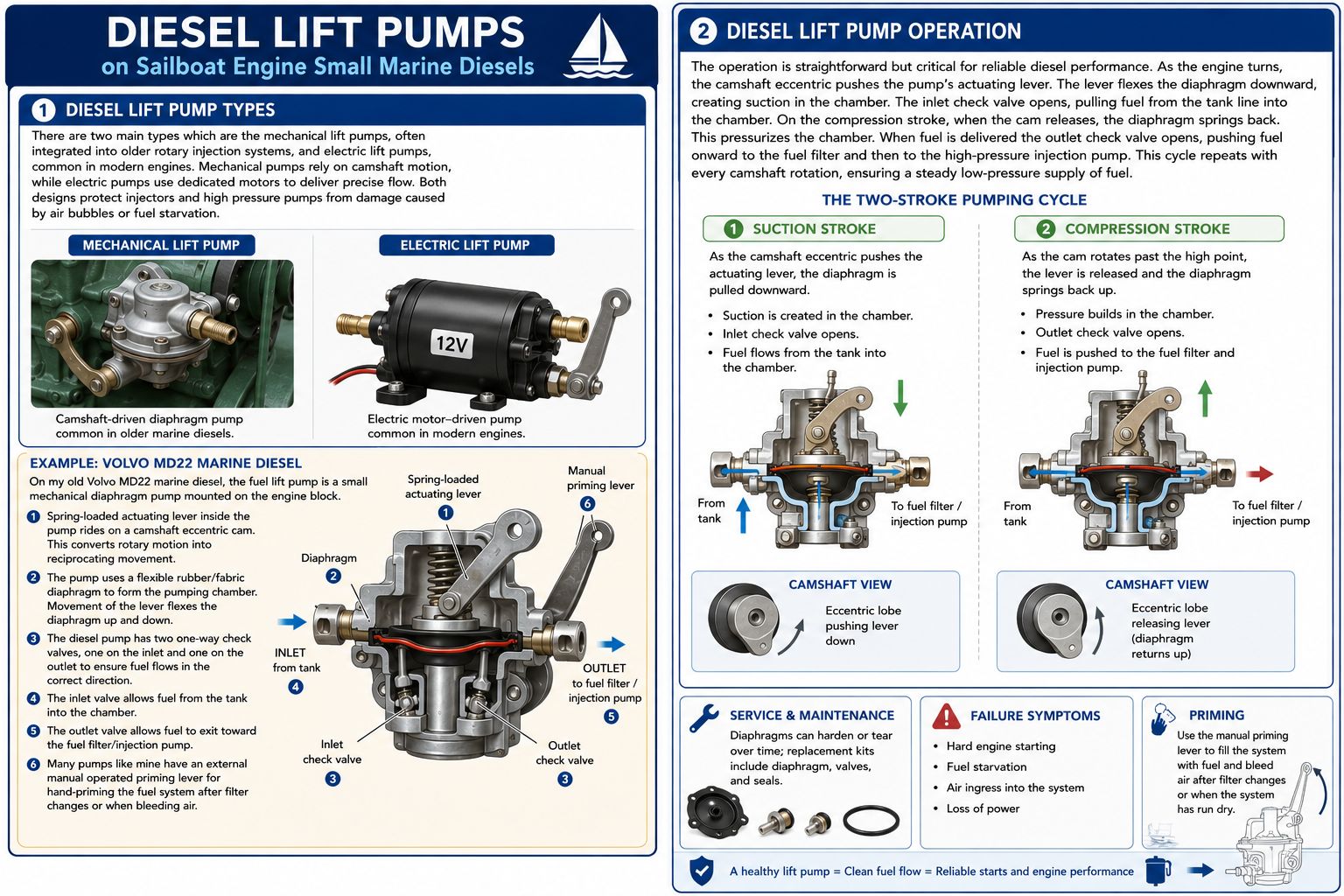

On my old Volvo MD22 marine diesel, the fuel lift pump is a small mechanical diaphragm pump mounted on the engine block. The pump has a spring-loaded actuating lever inside the pump that rides on a camshaft eccentric cam. This converts rotary motion into reciprocating movement. The pump uses a flexible rubber/fabric diaphragm to form the pumping chamber. Movement of the lever flexes the diaphragm up and down.
The pump has two one-way check valves, one on the inlet and one on the outlet to ensure fuel flows in the correct direction. The inlet valve allows fuel from the tank into the chamber. The outlet valve allows fuel to exit toward the fuel filter/injection pump. Many pumps like mine have an external manual operated priming lever external lever for hand-priming the fuel system after filter changes or when bleeding air.
The operation is straightforward but critical for reliable diesel performance. As the engine turns, the camshaft eccentric pushes the pump’s actuating lever. The lever flexes the diaphragm downward, creating suction in the chamber. The inlet check valve opens, pulling fuel from the tank line into the chamber. On the compression stroke, when the cam releases, the diaphragm springs back. This pressurizes the chamber. When fuel is delivered the outlet check valve opens, pushing fuel onward to the fuel filter and then to the high-pressure injection pump. This cycle repeats with every camshaft rotation, ensuring a steady low-pressure supply of fuel. Diaphragms can harden or tear over time; replacement kits include diaphragm, valves, and seals. Failure symptoms can include hard engine starting, fuel starvation, or air ingress into the system.
Many more modern Volvo Penta and Yanmar marine diesels typically use low‑pressure electric fuel lift pumps instead of the older purely mechanical diaphragm pumps. These electric pumps provide more consistent fuel delivery, easier priming, and better integration with electronic injection systems. For example modern Volvo Penta fuel lift pumps are low‑pressure electric pumps (around 4–7 psi). They draw fuel from the tank and feed it to the high‑pressure common‑rail injection pump. They comprise a compact electric motor with internal check valves and filter screen. The advantages over mechanical pumps include continuous, reliable fuel flow regardless of engine speed. They simplify fuel system bleeding and priming after filter changes. Yanmar still supplies mechanical feed pumps on some small engines (e.g., 2GM, 3GM, 3YM series), but newer models increasingly use electric lift pumps. The transition from mechanical diaphragm pumps to electric low‑pressure pumps is due to electronic injection systems (common‑rail) requiring precise fuel delivery and benefit from constant low‑pressure feed. Electric pumps are easier to replace and diagnose; mechanical pumps require diaphragm kits and valve servicing. When troubleshooting fuel starvation, always check pump output pressure (2–7 psi range), electrical connections (for electric pumps) and diaphragm condition (for mechanical pumps).

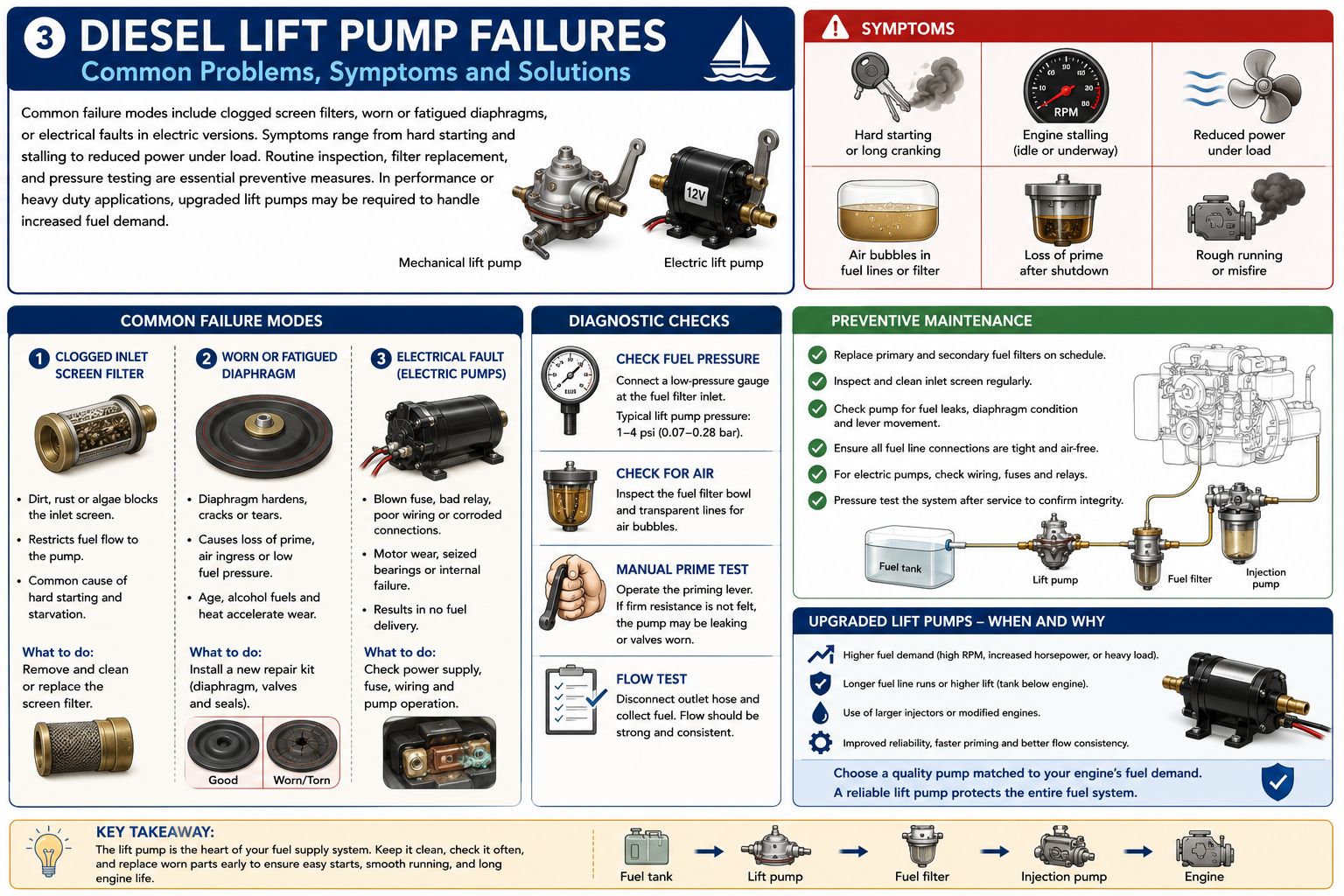

Common failure modes include clogged screen filters, worn or fatigued diaphragms, or electrical faults in electric versions. Symptoms range from hard starting and stalling to reduced power under load. Routine inspection, filter replacement, and pressure testing are essential preventive measures. In performance or heavy‑duty applications, upgraded lift pumps may be required to handle increased fuel demand.

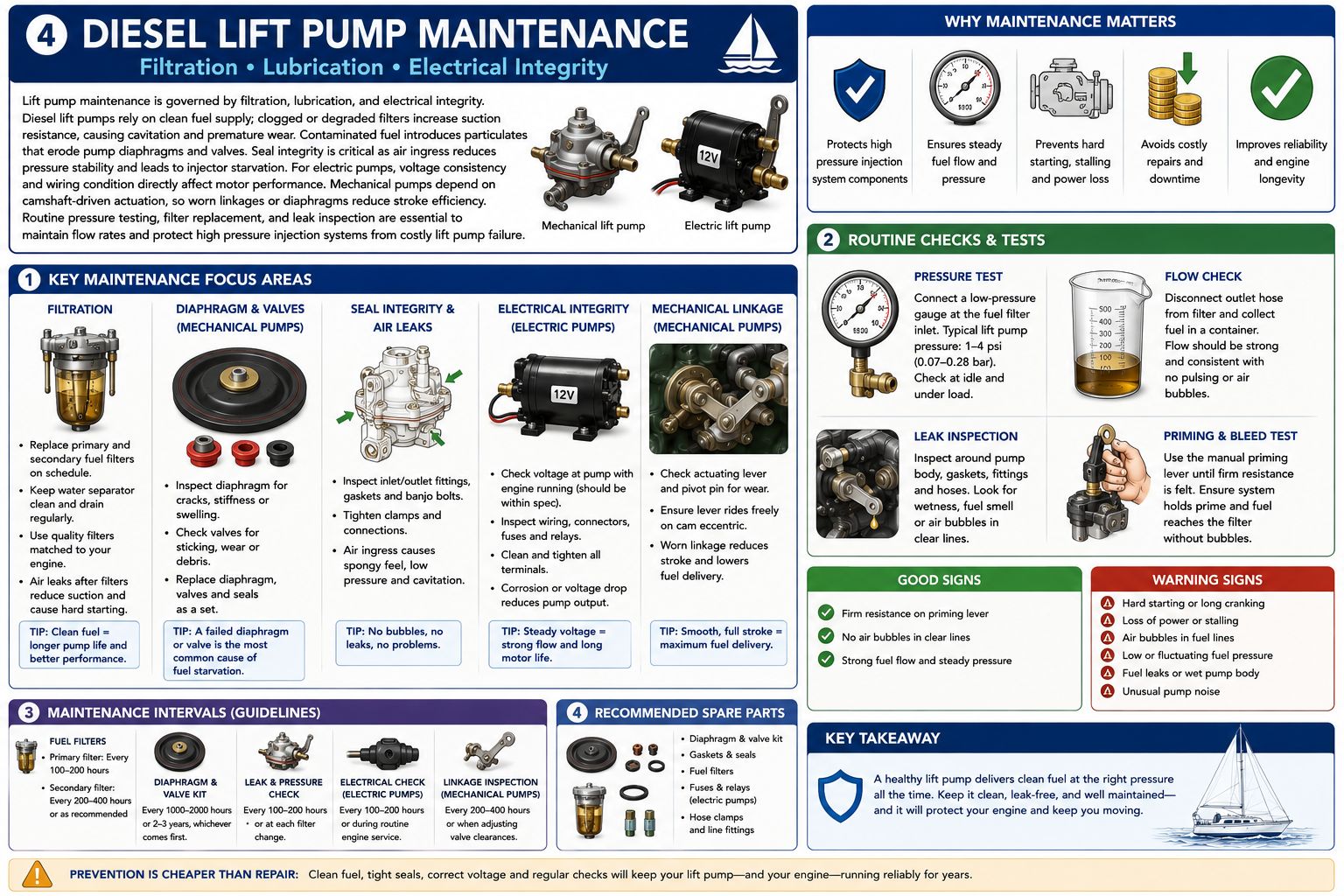

Lift pump maintenance is governed by filtration, lubrication, and electrical integrity. Diesel lift pumps rely on clean fuel supply; clogged or degraded filters increase suction resistance, causing cavitation and premature wear. Contaminated fuel introduces particulates that erode pump diaphragms and valves. Seal integrity is critical—air ingress reduces pressure stability and leads to injector starvation. For electric pumps, voltage consistency and wiring condition directly affect motor performance. Mechanical pumps depend on camshaft-driven actuation, so worn linkages or diaphragms reduce stroke efficiency. Routine pressure testing, filter replacement, and leak inspection are essential to maintain flow rates and protect high‑pressure injection systems from costly lift pump. Check that your marine diesel lift pump operates properly.
