Anchor Chain Bitter End
Release

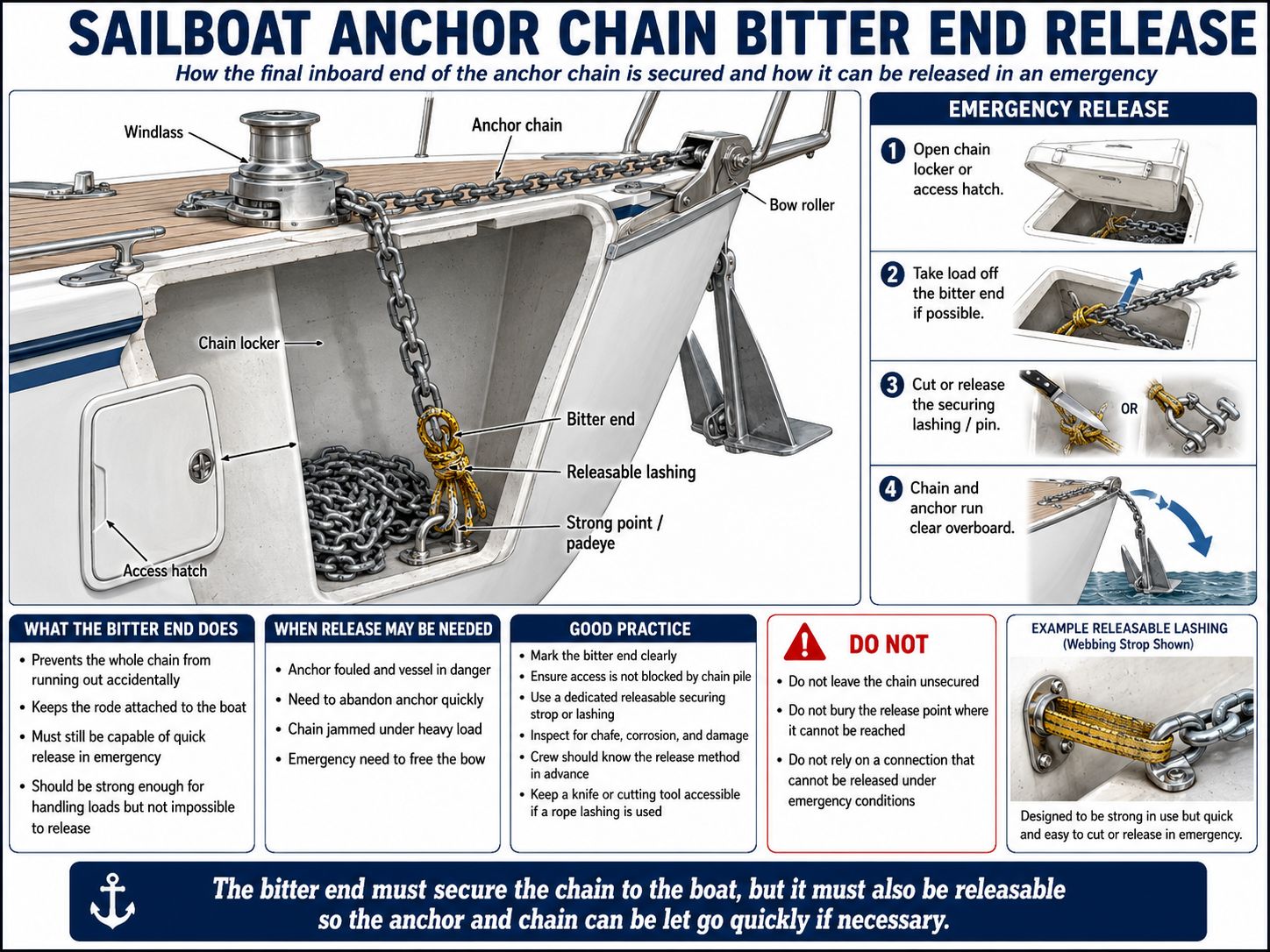

The anchor chain bitter end release arrangement is critical on a sailing yacht, anchoring equipment is mission-critical. While attention often focuses on windlasses, chain dimensions, and anchor selection, one often overlooked but essential component is the chain’s bitter end, the connection between the last link of the chain and the vessel’s structure, usually within the chain locker. Understanding its purpose, design, inspection requirements, and the scenarios that may require its deliberate release or severing is vital for seamanship, safety, and vessel preservation.
Often overlooked, it provides a critical safeguard, preventing accidental loss of chain while allowing controlled emergency release if the anchor must be abandoned. The term “bitter end” originates from naval usage, referring to the inboard end of an anchor cable attached to the bitts, strong posts that were located on the foredeck. This connection ensures that if the entire chain is deployed, it does not disappear overboard. It safeguards the vessel’s ability to retrieve the anchor or, at minimum, avoid losing hundreds of kilograms of chain.
Anchor Chain Bitter End Release
The Anchor Chain Bitter End Release is used when the boat is in imminent danger from dragging or grounding. If the yacht is anchored but suddenly starts dragging toward rocks, surf, harbour walls, or another vessel, and the windlass cannot recover the chain quickly enough, or the chain is jammed or fouled, or maneuvering is urgently required, then letting the chain go saves time and allows immediate propulsion and steering.
If the anchor or chain is irretrievably fouled due to being snagged on subsea wreckage, seabed cables, coral heads, rock fissures or debris, and conditions make diving unsafe or retrieval impossible, abandoning the anchor with a buoyed trip line allows escape and later recovery. The threat of structural failure or excessive equipment overload and rode tension spikes dangerously, such as experienced in violent wind gusts or swell, this threatens rip out the bow roller, damage the windlass, or worst case distort the hull, then being able to release the chain prevents catastrophic damage.
Anchor Chain Bitter End
Release
There are critical considerations. Before releasing the rode, attach a buoyed retrieval line (trip line) to the chain if at all possible. Ensure the bitter end is designed to be cut or released under tension (many yachts use a sacrificial lashing for this reason). Crew should be trained to locate and cut/tie off the bitter end rapidly. I have a rope that when the chain runs out will come clear over the gypsy and enable easy cutting with a knife without having to waste valuable time going to the anchor well and having to do this.
Anchor Chain Bitter End Release

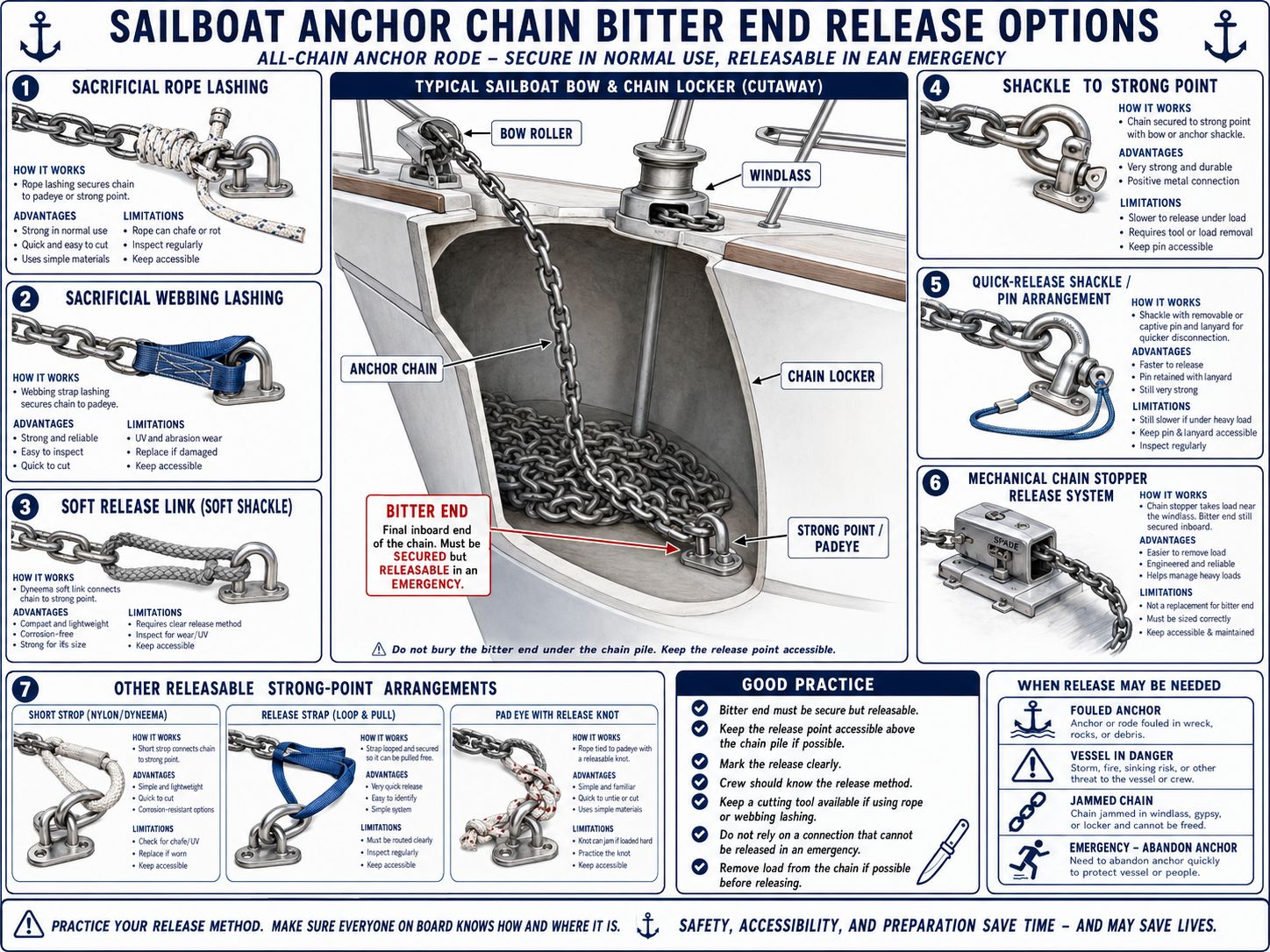

On cruising yachts, the bitter end is normally secured using one of three systems:
Sacrificial lashing or soft release link: A length of synthetic line (such as Dyneema or polyester) connects the final chain link to a bulkhead pad-eye. It is strong enough for normal holding forces but can be cut or broken deliberately if a quick release is required.
Bolt-in shackle termination: A stainless U-bolt or strong pad-eye is mounted inside the chain locker, with the chain secured via a shackle. This method provides strength but may be harder to release under load.
Mechanical chain stopper release system: Found mainly on larger yachts, this includes quick-release devices designed to free the chain safely under tension.
Different boats use different systems, but one principle remains constant: the bitter end must hold the chain securely and yet be capable of being released if required.
Anchor Chain
Bitter End Release - Maintenance
The bitter end is often out of sight and frequently neglected. Regular inspection should include the following:
- Corrosion or fatigue at pad-eyes and shackles
- Chafe or degradation on synthetic lashing
- Accessibility for cutting or unfastening
- Strength relative to vessel size
Many prudent skippers ensure that the bitter end lashing is not so strong that it is impossible to sever in an emergency. Conversely, it must not be weak enough to fail under shock loading if the chain snatches tight while anchoring.
Anchor Chain Bitter End
Release
Although it seems counterintuitive to let go of valuable chain and anchor gear, there are situations where intentionally losing the anchor and chain is preferable to endangering the vessel. There are four primary scenarios where severing or releasing the bitter end may become necessary:
1. Emergency Evacuation Under Drag or Collision Threat. If a yacht is anchored in deteriorating weather and begins to drag toward rocks, shallows, or other vessels, the ability to manoeuvre becomes paramount. If the chain is fouled, jammed in the gypsy, or cannot be recovered quickly, cutting the bitter end allows immediate engine use and manoeuvring. Heaving chain under high load may be slow or impossible, particularly if an electric windlass is overloaded or battery power is limited. A controlled and rapid letting-go of the whole chain may save the boat.
2. Snagged Anchor or Chain and Risk of Foundering. Anchors often foul on submerged obstructions, including wrecks, cables, coral heads, or rock fissures. While buoyancy aids such as trip lines can prevent this, retrieval still sometimes becomes impossible. If conditions worsen or towing forces threaten to damage windlass or bow structure, releasing the bitter end enables the yacht to escape without destruction. Later, with dive assistance or a calm window, the gear may be recovered from the marked buoy.
3. Fire Risk or Locker Flooding. In internal fire or flooding scenarios, anchor lockers may rapidly fill with water or become inaccessible. Burning or severing through an internal fixing may be forced, especially if the chain begins overhauling uncontrollably or becomes part of a grounding hazard. A deliberately weak lashing bitter end allows rapid disengagement without requiring tools or heat sources.
4. Grounding or Need to Kedge Off. When kedging off a grounding situation, sometimes the anchor must be left behind temporarily while the boat is repositioned, especially if the angle of pull changes or the anchor holds too firmly to reposition by chain alone. Releasing the bitter end and re-anchoring later allows a tactical shift in position.
Anchor Chain Bitter End Release Design
Best practice dictates that the bitter end connection should:
- Withstand ordinary loads
- Be releasable under load, ideally with cutters or a quick-release tie
- Be accessible from inside the chain locker
A common recommendation is using a three-strand nylon lashing of appropriate diameter. Nylon provides strength and elasticity but can be cut with a knife when needed—far easier than stainless steel shackles under tension
Crew Procedures
and Training
Offshore cruising skippers often include a bitter-end release drill. Key components include:
- Awareness of where the lashing and knife/cutters are located
- Practicing the act of cutting or untying the bitter end
- Rigging a buoyed recovery line before release
A marking float tied to the chain allows later retrieval when conditions permit.
Anchor Chain Bitter End
Release Safety Issues

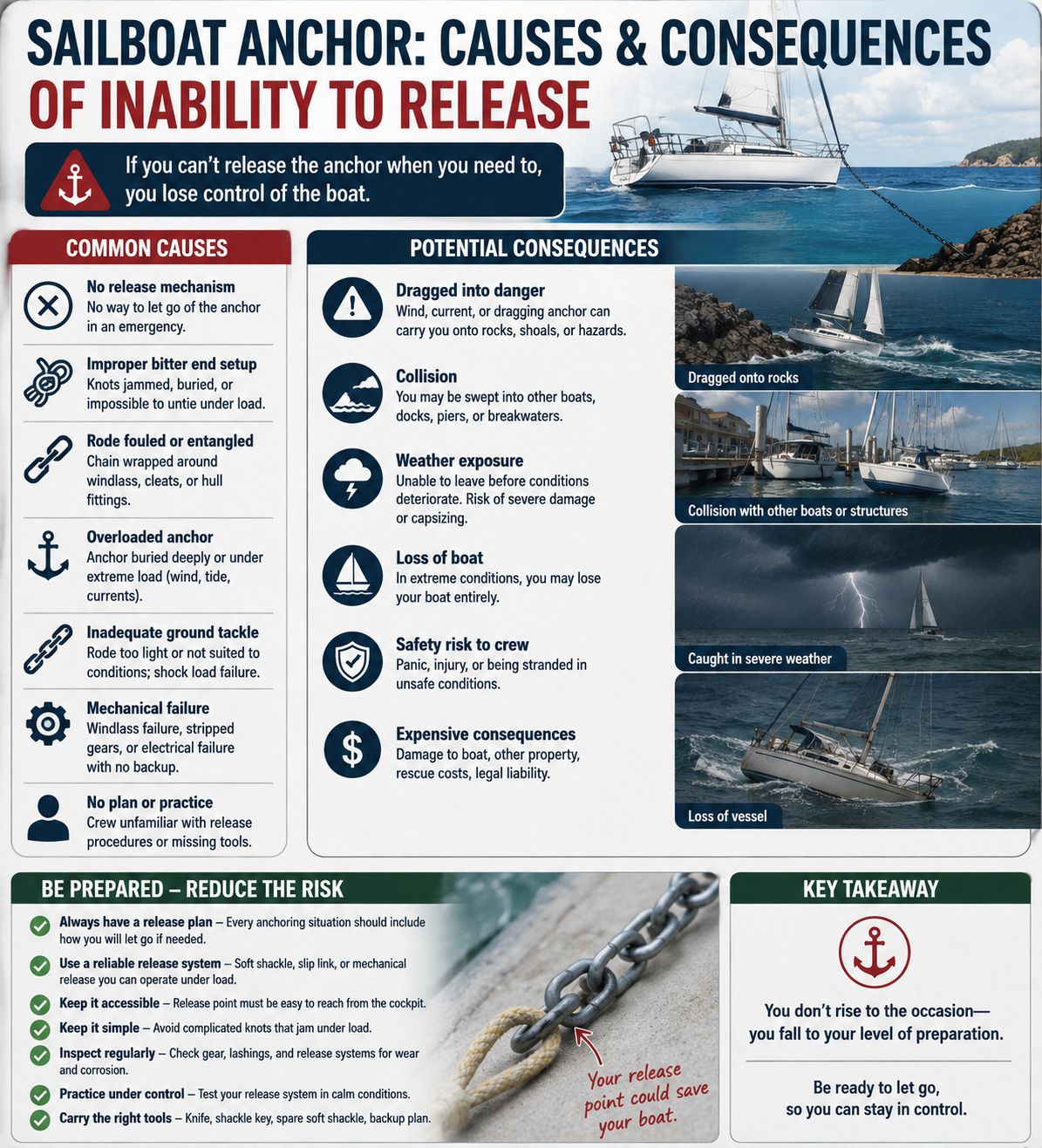

If the bitter end is bonded rigidly with stainless hardware without emergency release capability, the yacht risks:
- Windlass damage under overload
- Bow fitting distortion
- Hull penetration damage in severe snatch events
- Loss of control in emergency up-anchor situations
Conversely, a bitter end that is too weak may fail unexpectedly under snatch loads, causing accidental loss of anchor and chain.
Anchor Chain Bitter End
Release
The anchor chain bitter end is a small but essential component of a yacht’s anchoring system. It forms the last safeguard against losing ground tackle overboard but also an emergency release mechanism when circumstances demand sacrificing equipment to save the vessel. Its design must balance retained strength with deliberate sacrificial failure. Regular inspection, intelligent installation, and crew familiarity with its location and release method are key elements of responsible seamanship. A well-planned bitter end may never be used in anger—but when it is, it can be the dividing line between gear loss and vessel loss, or between controlled evolution and catastrophe. The Anchor Chain Bitter End Release is essential safety.
