Boat Gearbox Oil

Boat gearbox oil is often neglected.  Small marine diesel gearboxes and saildrives live hard lives. They operate in tight spaces, handle repeated load changes, work at low speeds, and rely on compact lubrication systems with minimal oil capacity. Because these units often contain less than a litre of oil, even slight contamination or wear becomes concentrated, amplifying symptoms that oil analysis can detect earlier than mechanical inspection.

Sampling boat gearbox oil is as valuable as sampling engine oil, but the process must be done correctly to avoid misleading results. This article outlines gearbox lubrication characteristics, correct sampling technique, lab interpretation, and troubleshooting based on common findings. Recently I checked mine, the first time since buying recently the boat and it was enlightening and my neighbouring boat also a new purchase found the same issues. The degraded oil was rather surprizing.

Boat Gearbox Oil Daily Checks

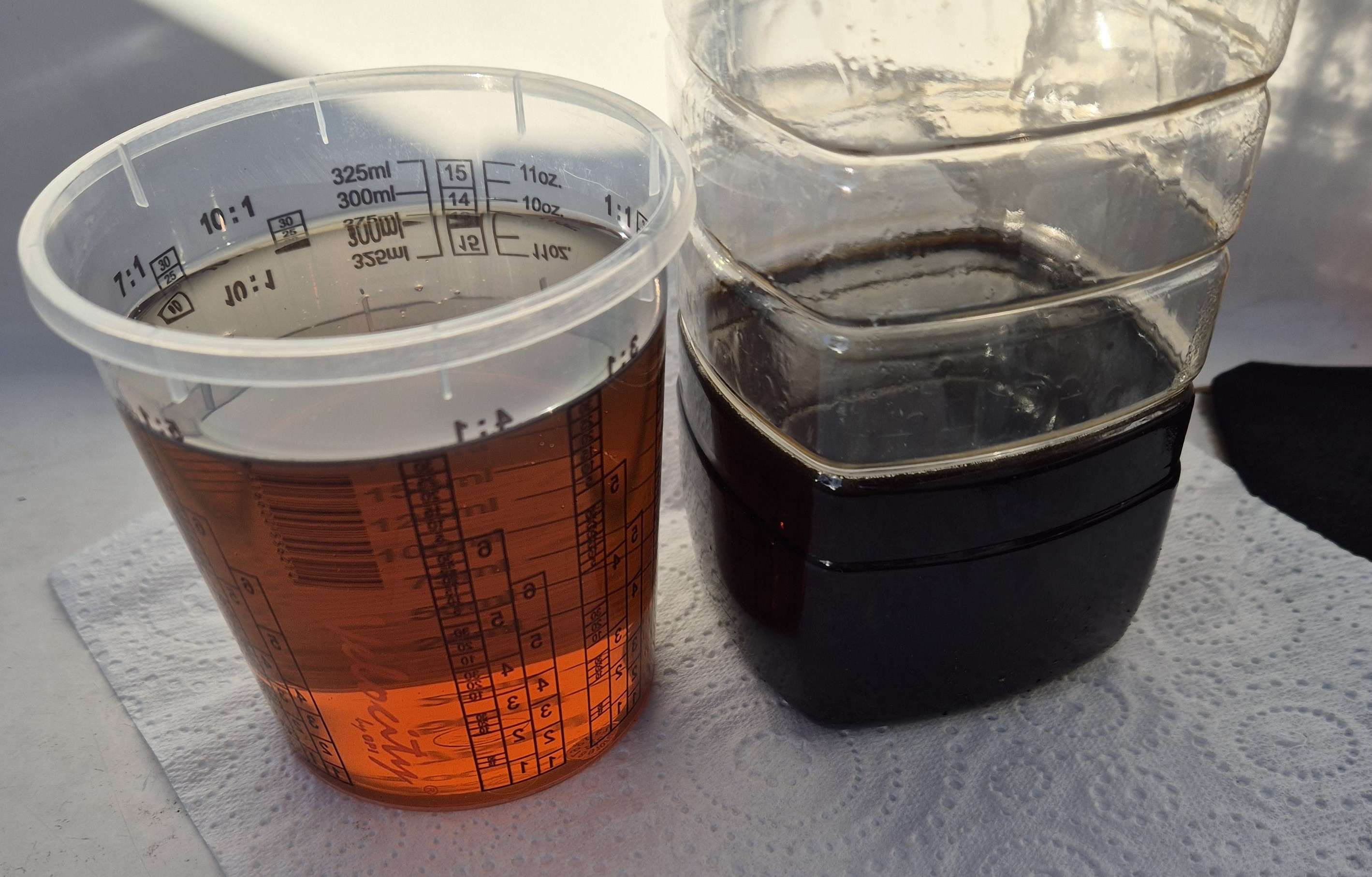

They have a dip stick for a reason and that is the periodic if not daily check of oil levels. Much like engine oils they also are indicators of condition. A finger test is a qualitative field test that can reveal texture, colour, smell, and film strength clues. Check oil between fingers, is oil is smooth oil it indicates healthy lubrication. If the oil feels gritty or has metallic particles this indicates gear or bearing wear. If the oil is slippery but thin it indicates possible viscosity loss. The colour of gearbox oil offers vital clues about condition. Clear amber oil signals healthy lubrication. Dark brown or black indicates oxidation, overheating, or heavy wear. Milky or cloudy oil suggests water ingress through seals. Metallic shimmer points to gear or bearing distress. Smell for burnt odour, which may indicate overheating or oxidation. A sour or unusual odour may indicate contamination or chemical breakdown. Regularly checking colour, alongside lab analysis, helps detect problems early, ensuring reliability, preventing costly failures, and extending gearbox service life.

The Marine Electrical and Electronics Bible 4th EditionThe Marine Electrical and Electronics Bible 4th Edition and all about marine diesels

Boat Gearbox Oil Types

The type of oil used varies by manufacturer and internal design:

ATF (Automatic Transmission Fluid – Dexron II/III). ATF is thin, highly detergent, and very stable under shear. It highlights clutch and bearing wear quickly when analysed.  This is commonly used in Hurth/ZF marine gearboxes. Kanzaki/Yanmar KM2, KM3 series

Hypoid Gear Oil (SAE 75W–90, GL-4 or GL-5). This oil has high EP (extreme pressure) additives containing sulphur and phosphorus. Hypoid gear oils are formulated for gear sets where the pinion sits below the centerline of the ring gear. Wear trends differ from ATF systems. This is commonly used in Volvo Penta saildrives, Some cone-clutch drives and high-load spiral-bevel gearsets.  In some Volvo Penta transmission gear boxes they use Volvo-approved synthetic transmission oil, typically SAE 75W-90. It ensures smooth gear engagement, protects against wear, and resists oxidation under marine conditions. Some manuals note engine oil (15W-40 CC/CD spec) may be used, but Volvo’s guidance prioritizes synthetic transmission oil for reliability.

Engine Oil Used as Gearbox Oil (some older designs). A few small engine units historically used SAE 30 engine oil. These are uncommon today but analysed the same way.

Water-Contaminated Oil in Saildrives

Saildrives are uniquely vulnerable to seawater ingress, and oil sampling is the earliest indicator of seal failure. Water ingress comes from the following:

  • Shaft seals
  • Gear selector rod seals
  • Corrosion pinholes

Boat Gearbox Oil or Saildrive Oil Sample Frequency

For accurate readings run the engine and engage gear under load for 10–15 minutes. This circulates oil through clutch packs and gears. Sample immediately after shutdown while the oil is warm and suspended debris is in motion. Always sample before changing oil, not after. Never sample cold oil. Wear particles settle and water separates.

Sampling Methods for Gearboxes and Saildrives

Because drain plugs are often low and awkward, a vacuum pump is the preferred tool. This is ideal for Hurth/ZF and Yanmar KM models.

Method 1: Vacuum Pump Through the Dipstick Tube (Best for most gearboxes)

  1. Remove dipstick and clean the surrounding area.
  2. Cut new tubing to reach around ⅔ of the sump depth.
  3. Avoid bottom sludge.
  4. Insert tubing without touching dirty surfaces.
  5. Draw ¾ of a bottle of clean, warm oil.
  6. Cap immediately.

Method 2: Vacuum Pump Through Saildrive Inspection Port (Volvo / Yanmar Saildrives). Saildrives often show early signs of water contamination, so clean technique is essential.

  1. Remove filler or inspection plug.
  2. Insert tube to mid-depth.
  3. Draw the sample as above.
  4. Dispose of tubing after use.

Method 3: Mid-Stream Sampling During an Oil Change. Used when no dipstick or access tube exists. Avoid end-of-stream oil, which contains concentrated sludge.

  1. Warm drive under load.
  2. Crack the drain plug.
  3. Discard first 50–100 ml.
  4. Catch mid-flow into sample bottle.
  5. Cap and label.

Boat Gearbox Oil Analysis Results

Gearboxes tell different stories than engines. There is no combustion, so contaminants are more informative and less “normal.”

Wear Metals (The Most Important Category)

Iron

  1. Gears, shafts, bearing races.
  2. Rising iron indicates tooth wear, misalignment, or bearing stress.

Copper & Lead

  1. Plain bearings and bronze thrust components.
  2. High readings suggest thrust bearing fatigue or overheating.

Aluminium

  1. Casings, some bearing housings.
  2. Elevated levels may indicate case wear from thrust loads or abnormal shaft movement.

Tin

  1. Bearing overlay metal.
  2. Signals developing bearing fatigue.

Chromium

  1. Hard-facing of shafts or gear surfaces.
  2. Rising chromium often means early gear pitting

Contamination

Water (free or emulsified). Crucial for saildrives. Indicates seal failure or condensation. Even 0.1% is harmful in ATF systems. Water reduces clutch friction and corrodes bearings. Salt Content (Sodium/Magnesium). Confirms seawater rather than fresh water contamination.

Fuel Contamination. Rare in gearboxes but possible when sharing an oil cooler with the engine. Indicates cooler failure.

Wear Debris Size Analysis. Larger particle counts suggest active gear or bearing failure.

Boat Gearbox Oil Analysis

Gearbox oil analysis on sailing yachts is vital for detecting wear, contamination, and lubrication breakdown. Regular testing prevents costly failures, ensures smooth propulsion, and extends equipment life. It supports safety, reliability, and efficient maintenance planning, protecting both voyage performance and long-term investment in yacht operations. Boat gearbox oil analysis pays off big time.
